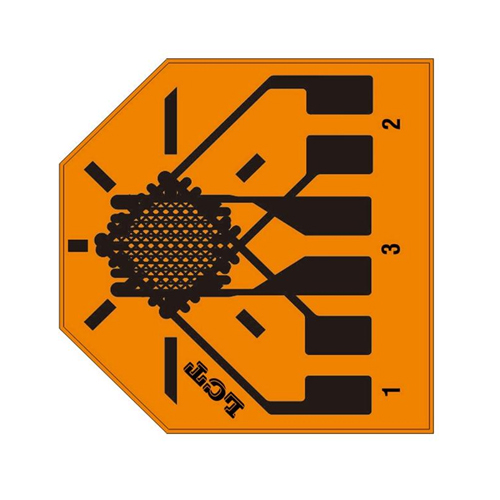

LCT Strain Gauges Rectangular Rosettes/ Stress Analysis/ CF120-1CB-B/C

  • Description

    Model: CF120-1CB(XX)-C

    Grid Material: Constantan foil

    Carrier Material: Phenolic

    Origin: Shenzhen, China


    Features

    Gage patterns designed for determining principle stresses and strains

    All patterns have three grids oriented at 0°,45°and 90°angles

    Both stacked and planar constructions available


    Description

    Strain gauges are made of either constantan foil or evanohm foil and phenolic resin,they are flexible and simply peration.Mostly 350Ω/650Ω/700Ω/1000Ω/2500Ω/3000Ωstrain gauges are designed for sensor or transducer application.

    As using the special base material by ourself ,ensure to non-linearity and hystersis of strain gauges be excellent;Precised seal structure is benefit to load cells be good stability for long-term;With advantages of self-temperature and creep compensation,which could be used for manufacturing load cells Class 0.02.

    All 60Ω/120Ωand part of 350Ω strain gauges are with advantage of self-compensation,good stability and flexible.They are specially designed for stress analysis,which can be used for micromeasurement.Customized product services are provided.

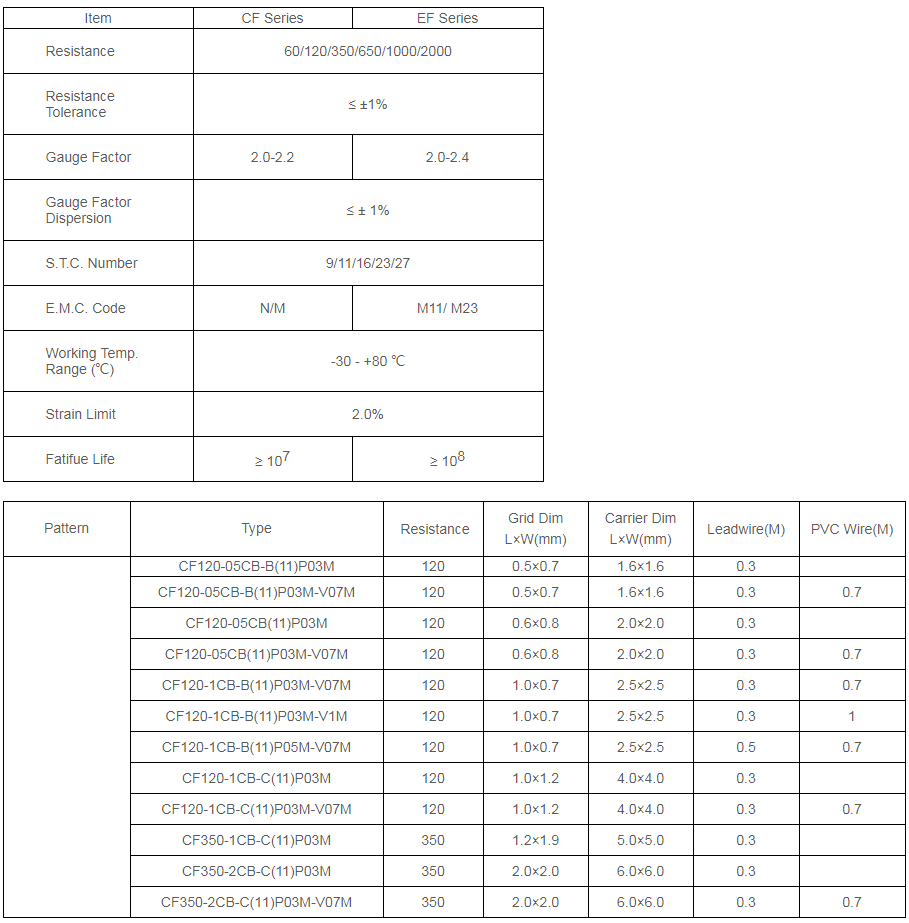

    Detailed parameters
